Concealed roller blind and flyscreen to fit any size marine hatch. Engineering Elegance.
- Concealed roller blind and flyscreen combined
- Blackout and flyscreen, or blackout or flyscreen only
- Low-profile frame enclosed within the headlining – completely invisible when stowed.
- Onboard privacy and comfort
- Cabin light and temperature control
- Reduce UV damage
- Reduce glare
- Insect control
- 0% light transmission fabric for improved blackout and temperature control
- Damper for perfectly controlled operation
- Innovative crossbar design, avoiding push button release
- Crossbar in silver as standard. Painted white or ivory on request
- Fully marinised aluminium system
- Available in Powered or Manual versions
Manual
Powered
Flyscreen
The PVC coated glass fibre weave of the Seaview flyscreen fabric allows air to flow around the cabin, while preventing minute insects access, as well as offering a long-lasting UV stable solution.
Cabin temperature
By controlling light transmission and reflecting heat, hatch screens help control cabin temperature.

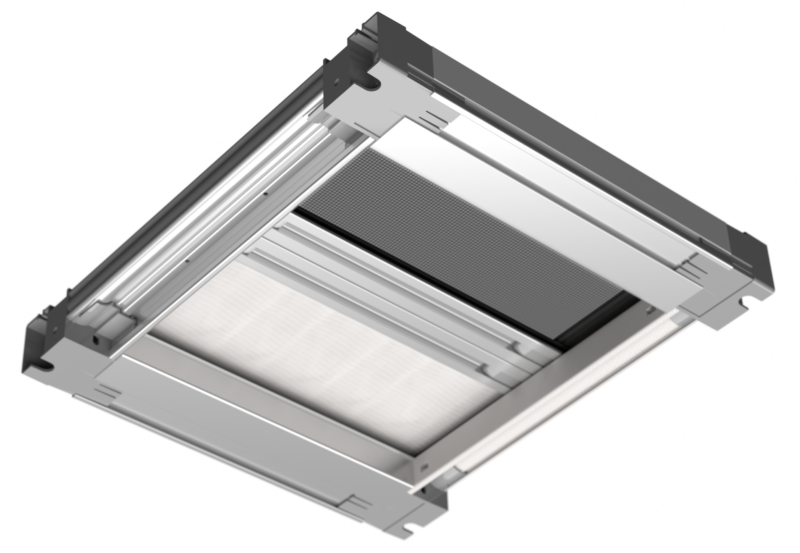

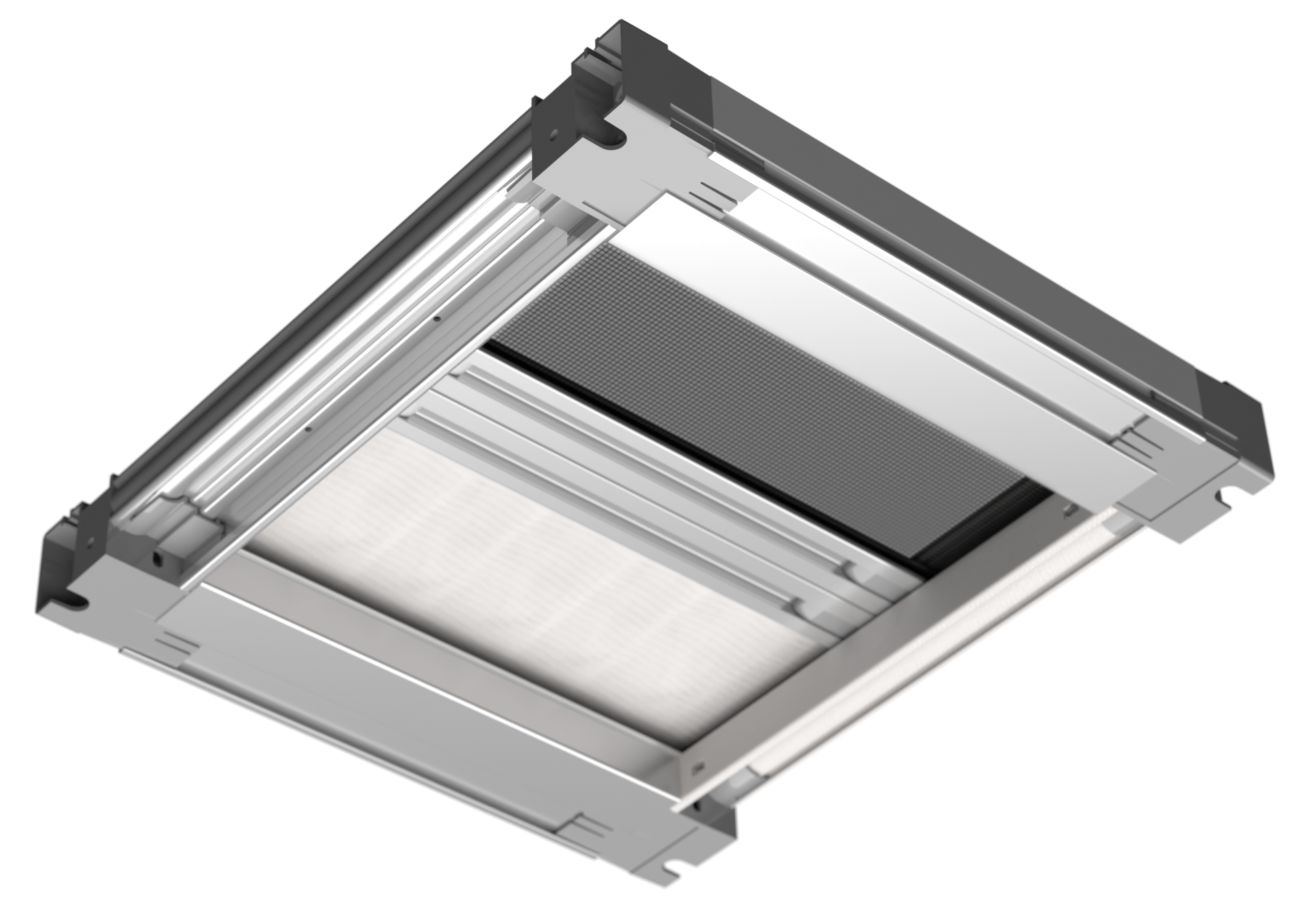

Enclosed design for completely hidden blackout and flyscreen combined, or blackout only or flyscreen only
- a. Frame depth: 42mm
- b. Head rail width: 60mm
- c. Side rail width: 40mm
SEASCREEN Enclosed
Available in all standard sizes
Manual
Powered
Legend
- Height (H2) and Width (H2) are measured to the inner faces of the hatch trim.
- Trim thickness (T) is the distance between the inner face of the trim and the inner face of the blind.
- Seaview will calculate the overall blind aperture (H1Â x W1).
Minimum and maximum dimensions
| Manual | Width (W) | Drop (H) |
|---|---|---|
| Minimum | 220mm | 260mm |
| Maximum | 1000mm | 1000mm |
| Powered | Width (W) | Drop (H) |
|---|---|---|
| Minimum | 230mm | 200mm |
| Maximum | 1000mm | 1000mm |
Crossbar colour options
 |
 |
 |
| Silver standard | White on request | Ivory on request |
